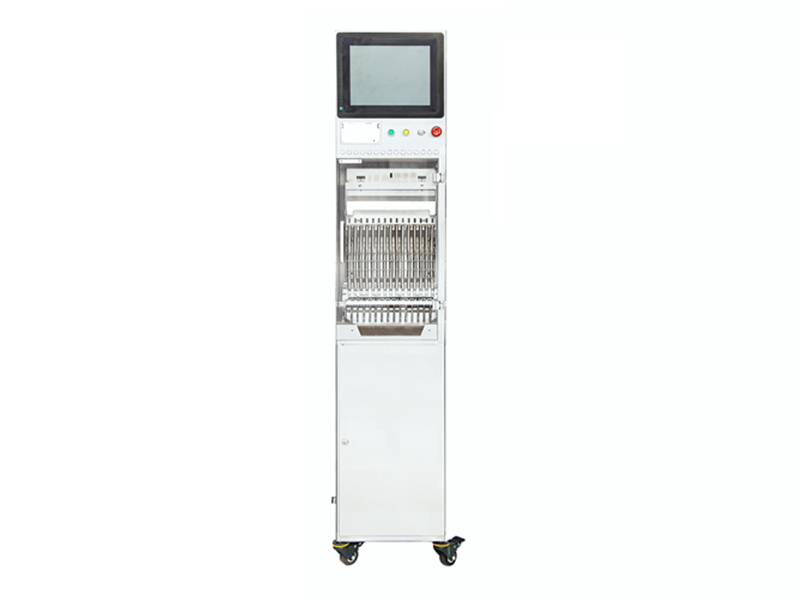

Small checkweigher S-CMC can weigh and detect the capsules and tablets, accurate and quickly eliminate unqualified products by weight, used for off-line weighing in the workshop, especially for capsule filling machine and tablet press machine in the boot debugging stage, final stage (the powder is less), and the grain weight deviation products produced by the instability of filling and tablet pressing equipment in the production process were weighed and detected, eliminate unqualified products, reduce scrape, improve product yield.
Small checkweigher S-CMC can also used for sampling and weighing detection in the production process, which makes it easy to increase the sampling quantity and sampling frequency. The small checkweigher S-CMC can sample the capsules and tablets at one time which produced by the filling and tablet pressing machine for one circle, weighing detection one by one,
counting the weighing situation, and eliminating the unqualified products. The time interval of sampling and weighing can be flexibly set. For example, sampling and weighing every 10 minutes, and S-CMC is 100 times higher than manual sampling, so as to better control the drug weight.
When S-CMC is used as sampling and weighing, manual feeding can be done offline (when the interval is up, the equipment will be automatically reminded by buzzer alarm), or sampling mechanism can be added. When the interval is up, S-CMC can be directly sampled and weighed from the tablet pressing equipment automatically.
S-CMC, as the entry product of Checkweigher CMC, has flexible usage and multiple USES, which increases the practical value of the equipment. It can be used for small batch checkweigher, improve product yield, reduce scrap and save material cost. It can also be used for off-line or online sampling and weighing, monitoring the weight of drug at any time, and stability of capsule filling and tablet press equipment to improve product quality.
1. The core part of the equipment adopts high-precision electromagnetic balancing weighing sensor, DSP high-speed signal processing system, and military aviation level software algorithm. With accurate and rapid measurement data, stable operation and strong anti-environmental interference ability, the equipment can be directly used next to the capsule filling and tablet pressing machine with large vibration without affecting its weighing accuracy;
2. It can detect all types of capsules such as 000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#, SA, SB, and most tablets;
3. The mold adopts the building block bond and positioning structure. When changing the model of the capsule, the mold can be quickly disassembled and installed by hand with accurate positioning;
4. Small size, does not take up space, equipped with PU casters, easy to move;
5. Reasonable design, few equipment failure points, easy to use, simple operation and maintenance, low maintenance cost;
6. Production recipe management call, rich data statistics, data storage, query and print functions;
7. Preset qualified range, quick and automatic sorting of good and bad products;
8. User-friendly operation interface, intuitive chart display;
9. The human-machine interface synchronously displays the weight value of each channel, and visually displays the qualified or not of the current channel products in the form of green and red histogram respectively. The equipment synchronously lights up the indicator light, making the detection process more intuitive;
10. The innovative three-way design of good, bad and uninspected products perfectly solves the discharge problem of uninspected products during abnormal shutdown and eliminates misjudgment;
11. Automatic alarm of equipment failure, prompt alarm information.
|
Model |
Efficiency |
Application Capsule Size |
Weighing Range |
Scale Interval |
Dynamic Accuracy |
Power Supply |
Air Supply |
Dimensions |
|
S-CMC±1mg |
900pcs/min |
000#~5# |
20~2000mg |
0.1mg |
±1.0mg |
220V ;50Hz |
6~8bar |
490x350x1480mm |
|
S-CMC±2mg |
1200pcs/min |
000#~5# |
20~2000mg |
0.1mg |
±2.0mg |
220V ;50Hz |
6~8bar |
490x350x1480mm |
