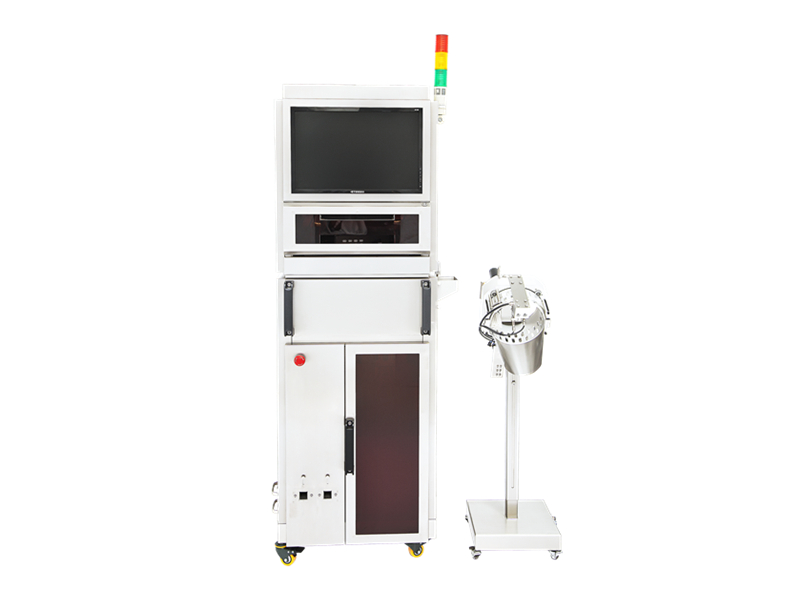

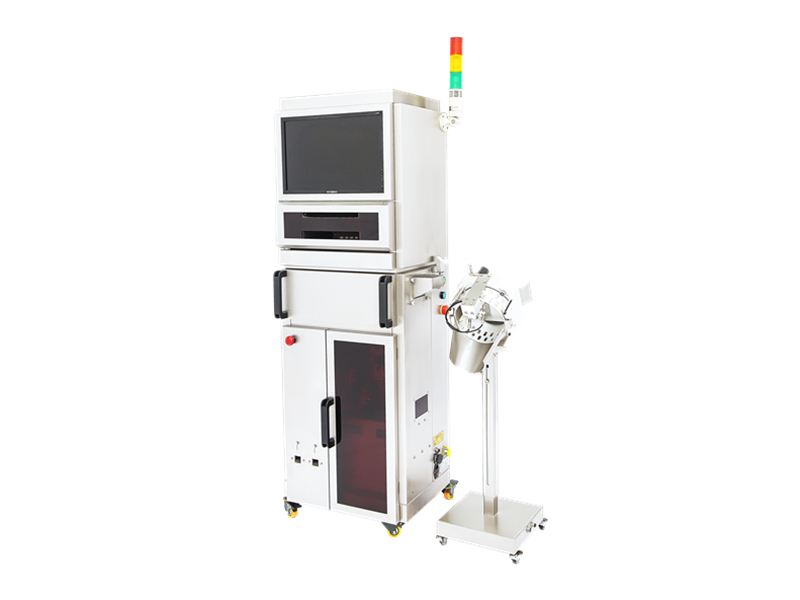

Multifunctional tablet production quality online monitor detection machine for batches TVS can work with all models of tablet press machine, through high frequency online automatic sampling, the four important quality indexes of tablets were detected automatically and sequentially: weight、thickness、hardness、fragility. TVS monitors the changes of various production indicators of tablets and the running status of tablet press machine in real time. When abnormal production indicators of tablets are found, TVS will immediately alarm and automatically store unqualified samples separately.
At the same time, TVS automatically generates a variety of data records, statistics, documents and control charts for each measurement indicator. TVS has the functions of recording query and automatic printing, as well as the functions of synchronously uploading all data to the central control system. In terms of data management, it fully complies with the highest requirements of EU cGMP and GMAP5, strictly complies with the provisions of US FDA 21CFR-PART11, and has the functions of three-level password access system, electronic record electronic signature, audit tracking, etc. to fundamentally ensure the data integrity of drug production process.
As for TVS, the detection for batches is a more powerful functions with logical judgment ability. When a production index is abnormal, the detection function for batches of TVS can immediately isolate the product section with risk, so as to ensure that the qualified product section must be qualified, and those products with quality risk are isolated in the risky product section.
TVS enables the quality indicators of the tablet and the operation of tablet press machine to be closely and effectively monitored at all times, to detect problems in time, immediately alert and isolate the risky product sections. TVS enables remote monitoring at the production site, real-time understanding of what is going on at the production site, and clairance-vision and wind-tunnel ears for production and quality management personnel.
As a set of powerful quality control system, TVS is the process control of tablet production quality, a powerful tool to find problems in the first place and help production personnel to find problems quickly, an effective implementation tool of SPC quality management concept, and an effective guarantee for product quality.



1.  TVS is connected with all types of tablet press machine
2.  Three level password permission to log in to the operating system
3.  The product recipe history parameter is called flexibly
4.  Timing and automatic calibration of the measuring instrument
5.  High-frequency sampling at predetermined time intervals
6.  A predetermined number of samples are taken for testing one by one
7.  Accurate measurement automatically records the data of each capsule
8.  Draw the index control curve dynamically in real time
9.  Strictly monitor according to preset alarm conditions
10. At any time to print check report of the indicators
11. Discover any abnormal indicators to alarm immediately
12. If the situation is serious, automatically stop tablet press machine
13. Store good and bad products separately and automatically
14. Automatic section effectively isolates risk products
15. Real-time remote monitoring of production site
16. Build unmanned workshop to realize industry 4.0
17. Has the powerful data information statistics function
18. Calculate CPK and draw normal curve of index
19. Data is persisted for query invocation
20. 21CFR-11 electronic record electronic signature
21. Facilitate quality retrospectives with audit trails
22. Comply fully with FDA data integrity
23. Meet the highest requirements of cGMP GAMP5
24. Can pass the computer system verification smoothly

Control Indicators

Weight

Thickness

Hardness

Fragility

The Corresponding Performance Parameters

Scale Interval

Dynamic Accuracy

Effective Range

Scale Interval

Accuracy

Thickness Range

Scale Interval

Dynamic Accuracy

Effective Rang

Scale Interval

Dynamic Accuracy

Effective Rang

Adjustable Speed

0.1 mg

±1 mg

2000 mg

0.001mm

0.01mm

0~12 mm

0.1 N

±1 N

5~300 N

0.1 mg

±1 mg

200 g

20~60 rpm

Detection Time Consuming

1s/tablet

10s/tablet

15s/tablet

20min/time

Power Supply; Air Supply

220V; 50Hz ; 6~8bar

Dimension

550 x 450 x 1650mm

Weight

180Kg
